Herramientas automáticas en Espirometría

feb 20, 2024

La espirometría es un método de diagnóstico en el que el paciente debe realizar todo el esfuerzo para que la prueba se lleve a cabo correctamente. Sin embargo, la tecnología digital puede ayudarles a usted y al paciente en el proceso del examen físico. Las siguientes funciones automáticas de MESI mTABLET SPIRO pueden ayudarle a guiar al paciente y a interpretar la calidad de las maniobras durante y después de su realización.

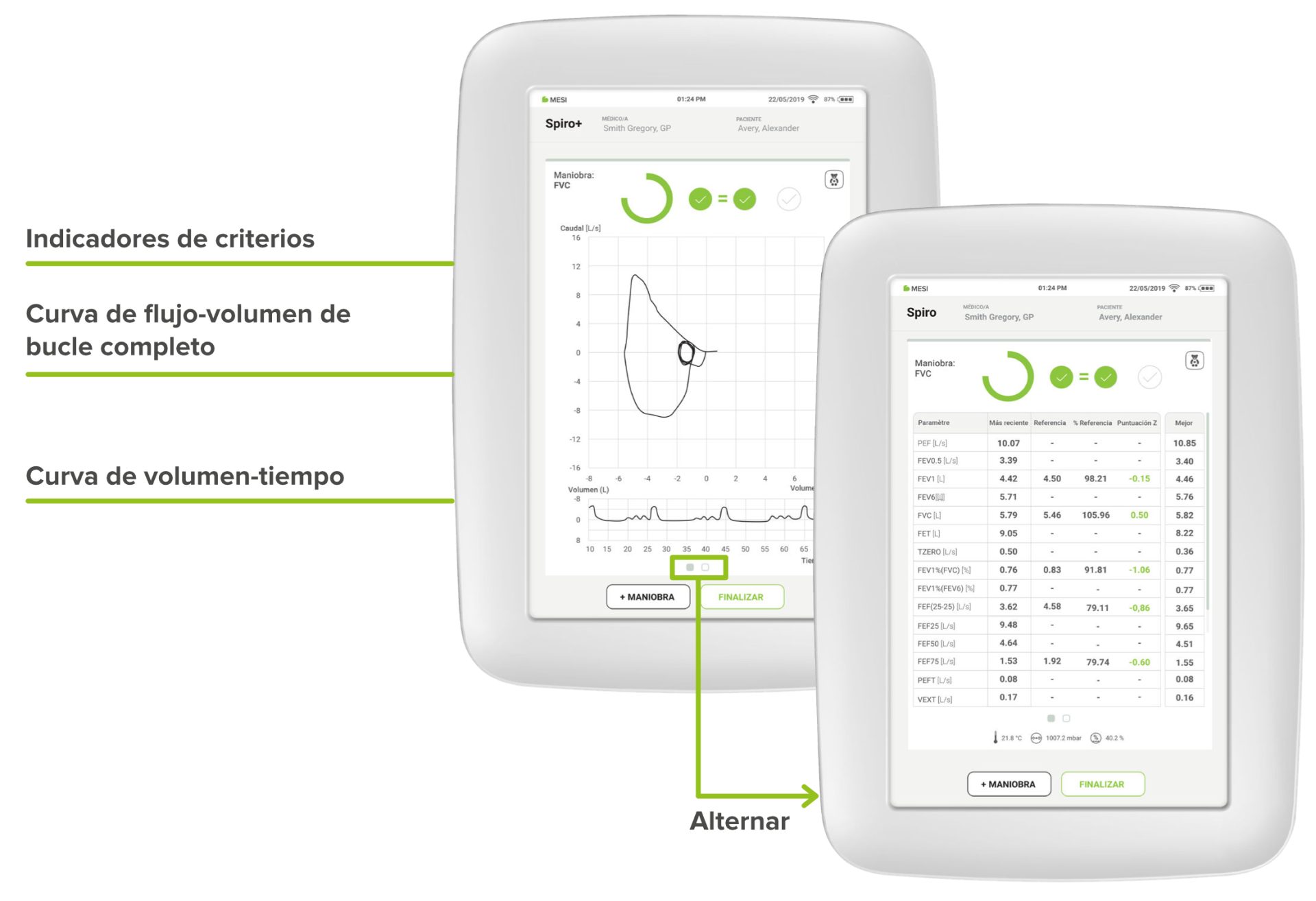

Pantalla en tiempo real de la curva de flujo-volumen

Mientras se lleva a cabo la maniobra, es posible monitorizarla a través de una pantalla visual mejorada que muestra la curva de flujo-volumen y los parámetros. Puede alternar entre la vista de gráfico y la vista de valores de parámetros.

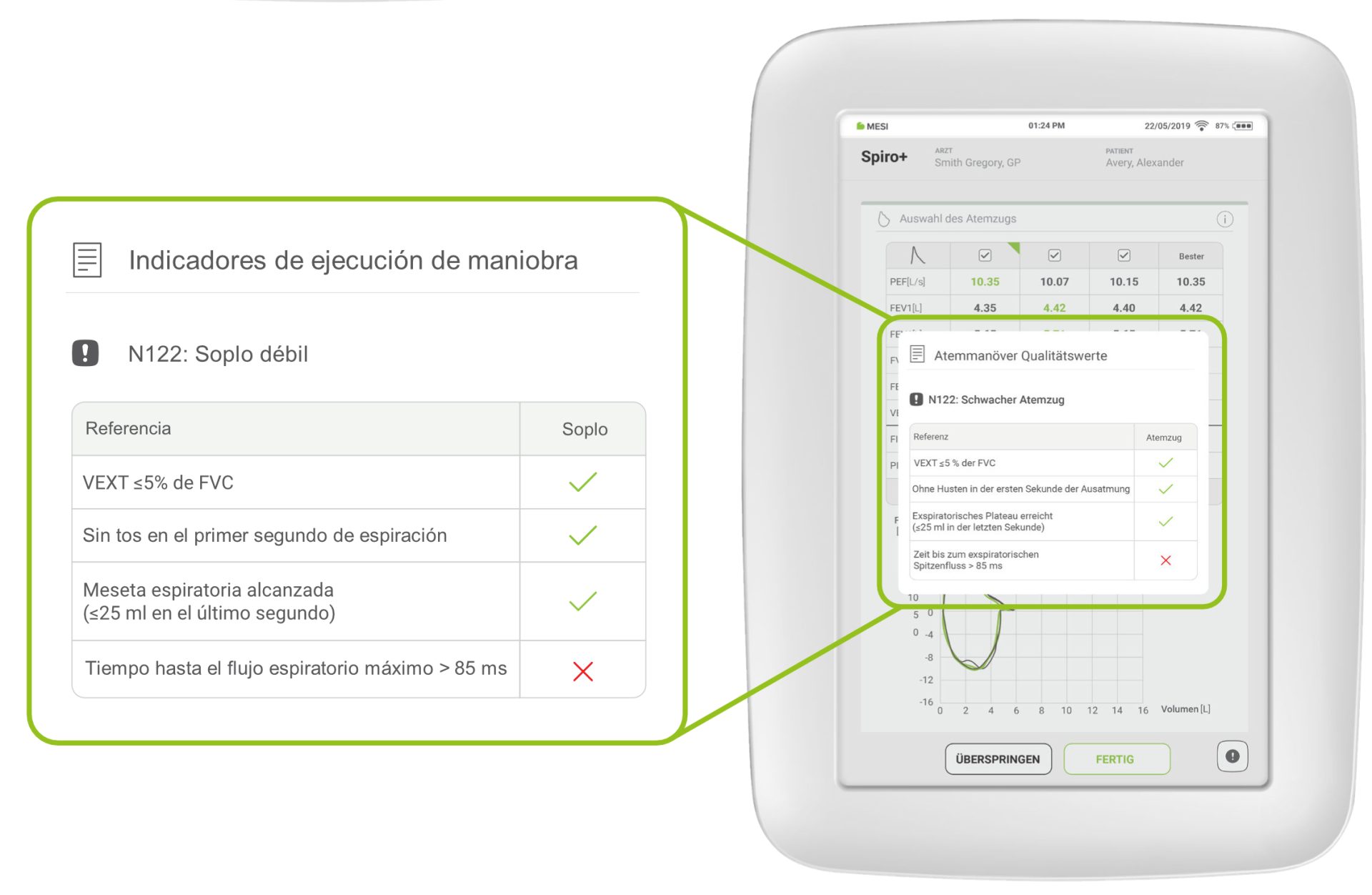

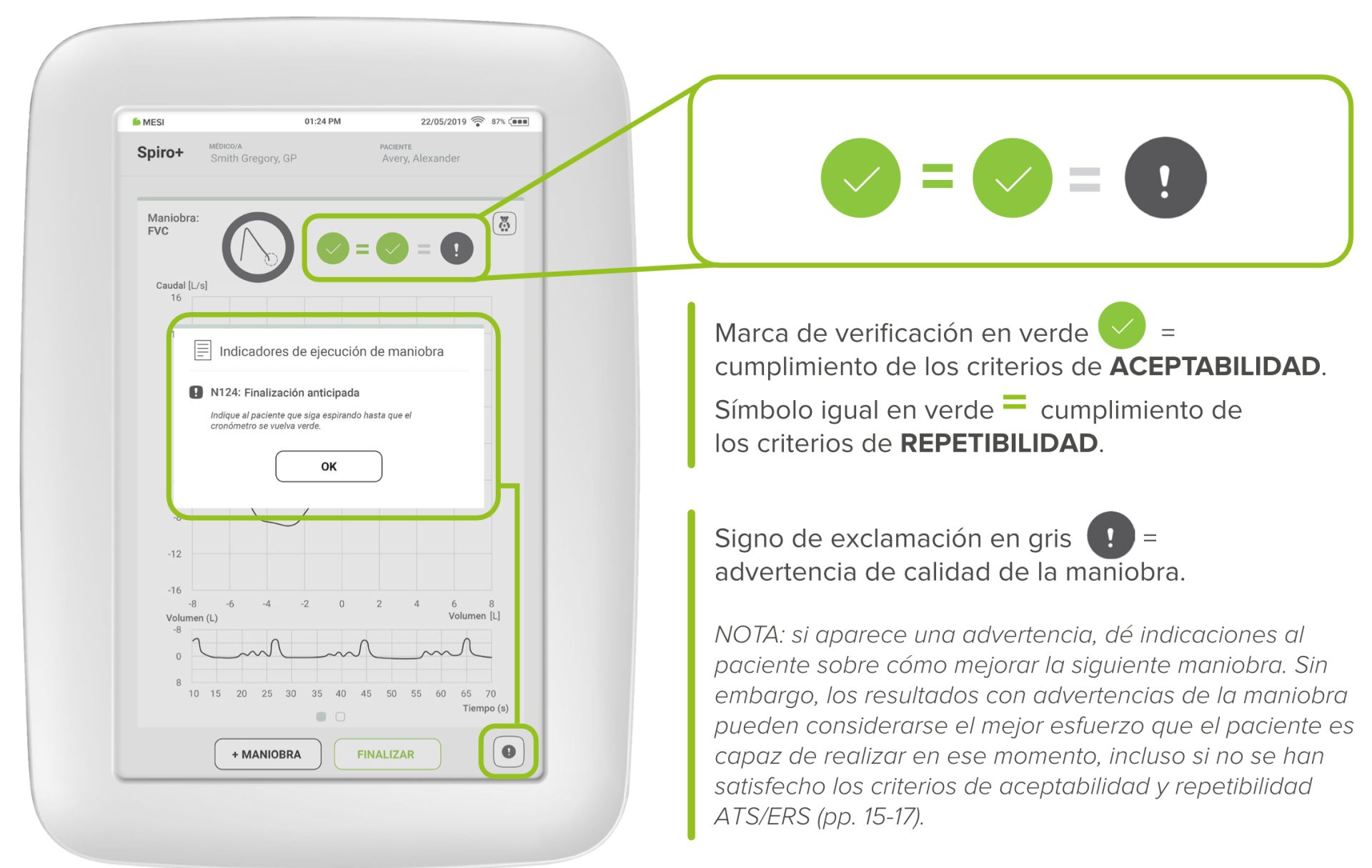

Advertencias de calidad de la maniobra

Si el dispositivo no detecta problemas de calidad en la maniobra realizada, aparecerá una marca de verificación en verde. En caso contrario, se mostrará una de las siguientes advertencias de calidad de la maniobra:

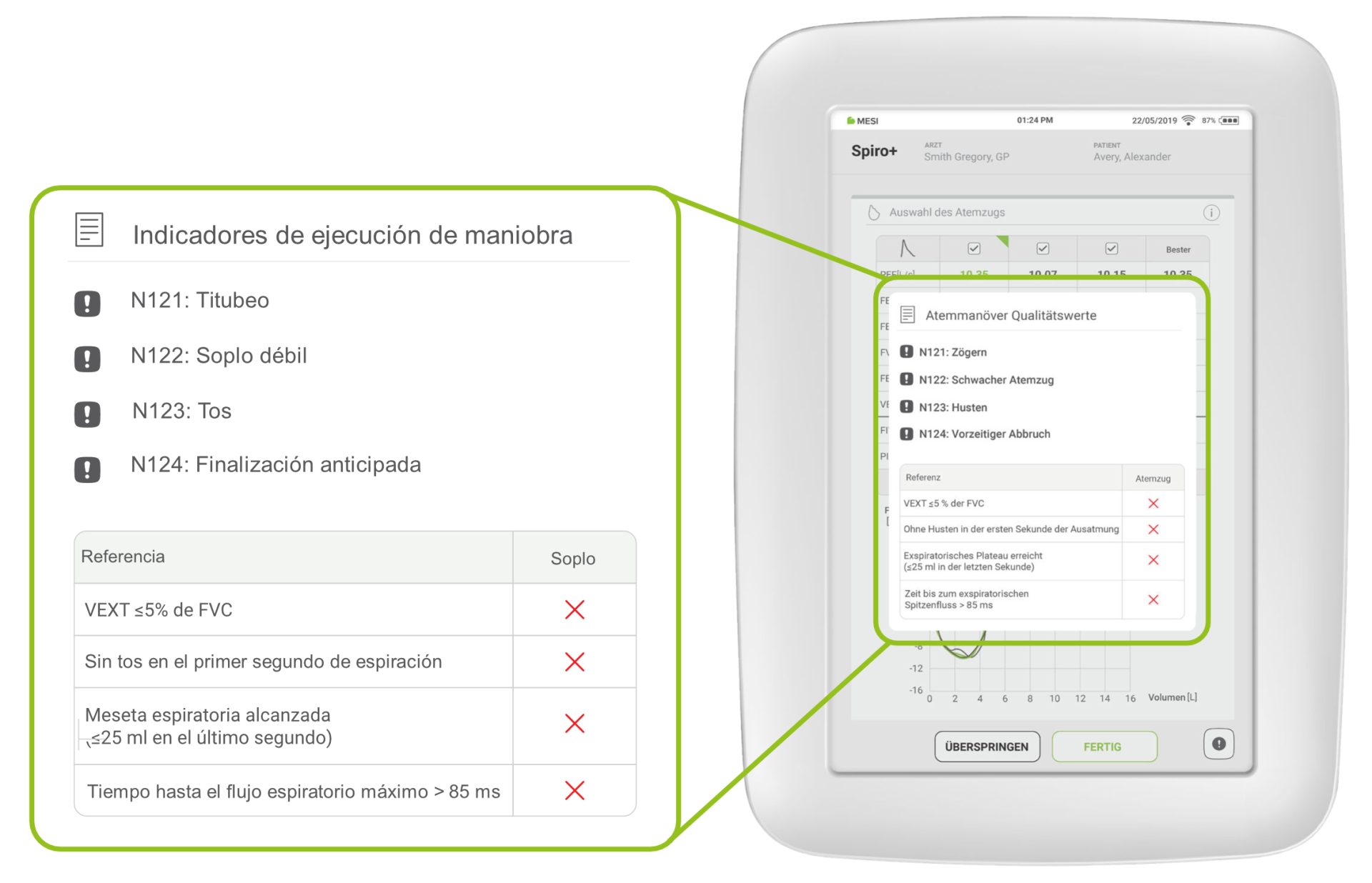

A continuación, se muestra un ejemplo si no se ha satisfecho ninguno de los criterios de aceptabilidad:

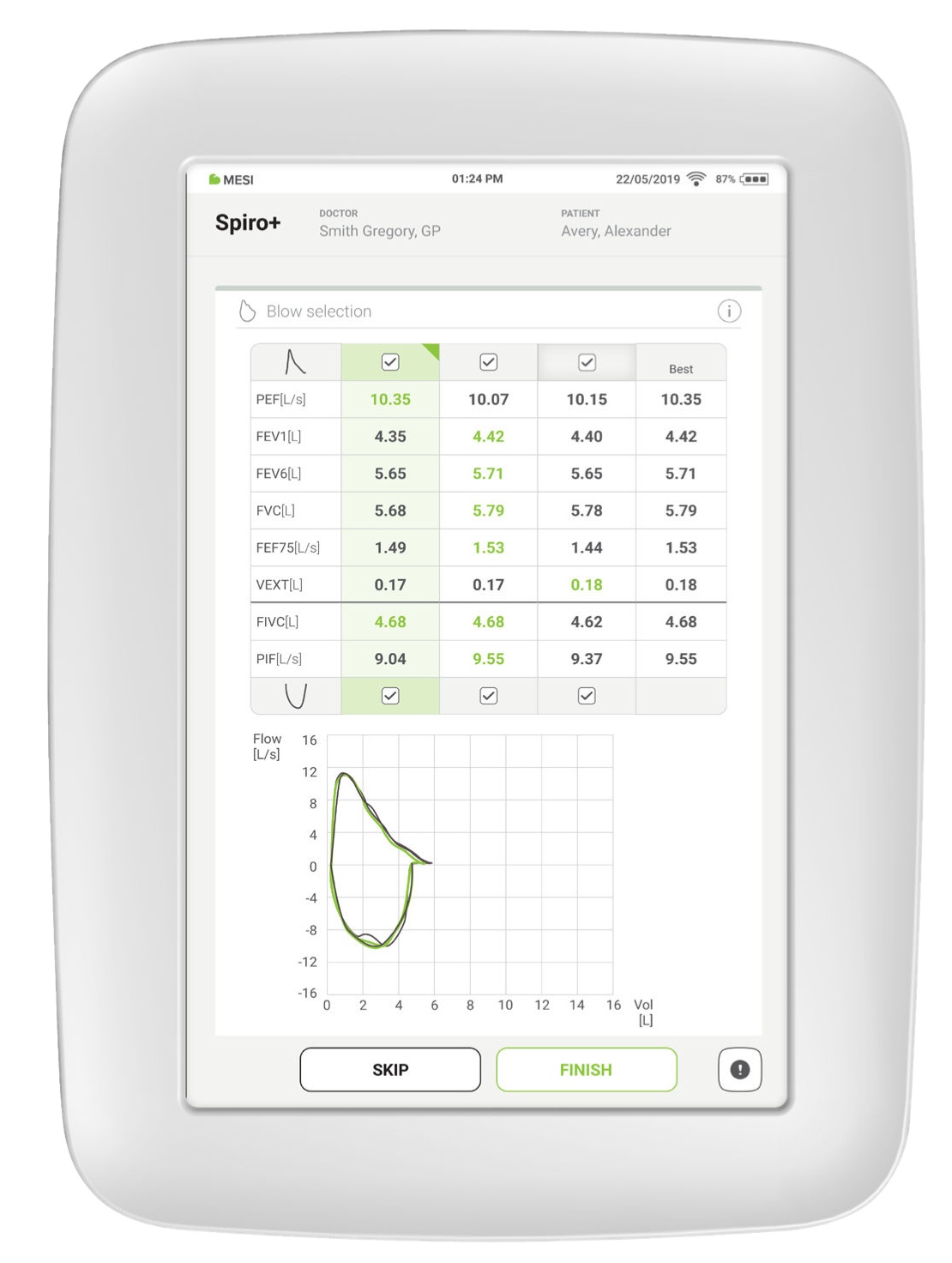

Selección de los mejores resultados (selección de BestBreath™)

El dispositivo analiza las espiraciones y selecciona automáticamente la mejor curva. Este método resulta ventajoso si dos curvas son muy similares. Sin embargo, también existe la opción de anular la selección de cualquier maniobra seleccionada y elegir la preferida de forma manual.

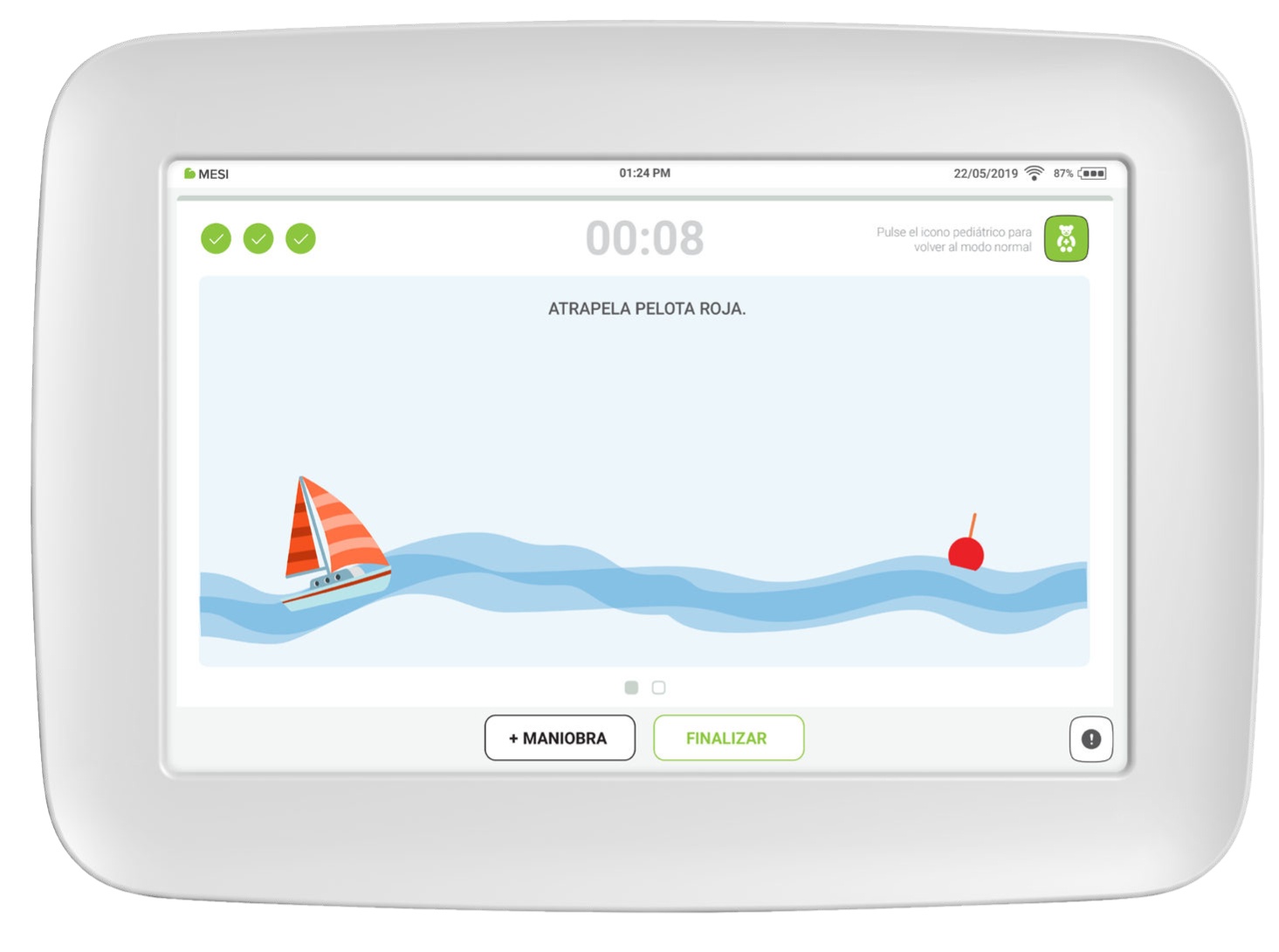

Modo con incentivos animado

El modo con incentivos animado se utiliza con fines pediátricos. Está diseñado para adaptarse a las características psicológicas de los niños mientras se les da indicaciones durante la prueba de espirometría. Conforme sople el paciente, el velero se acercará a la boya roja. El soplado se realiza correctamente si el velero toca la boya y aparece la marca de verificación en verde.

En MESI mTABLET SPIRO, la animación con incentivos se basa en los criterios ATS/ERS 2019 [16].

Afecciones frecuentemente diagnosticadas con espirometría

Comparación de diferentes dispositivos de espirometría

Aprenda cómo realizar correctamente una ESPIROMETRÍA en un libro electrónico completo:

Consiga el libro electrónico gratis
