Outils automatiques en spirométrie

févr. 20, 2024

La spirométrie est une méthode de diagnostic pour laquelle le patient doit faire tous les efforts nécessaires pour que le test soit réussi. Cependant, la technologie numérique peut aider le patient et le professionnel de santé, dans le processus d’examen. Les fonctions automatiques suivantes de MESI mTABLET SPIRO peuvent aider à encourager le patient et à interpréter la qualité des manoeuvres pendant et après leur exécution.

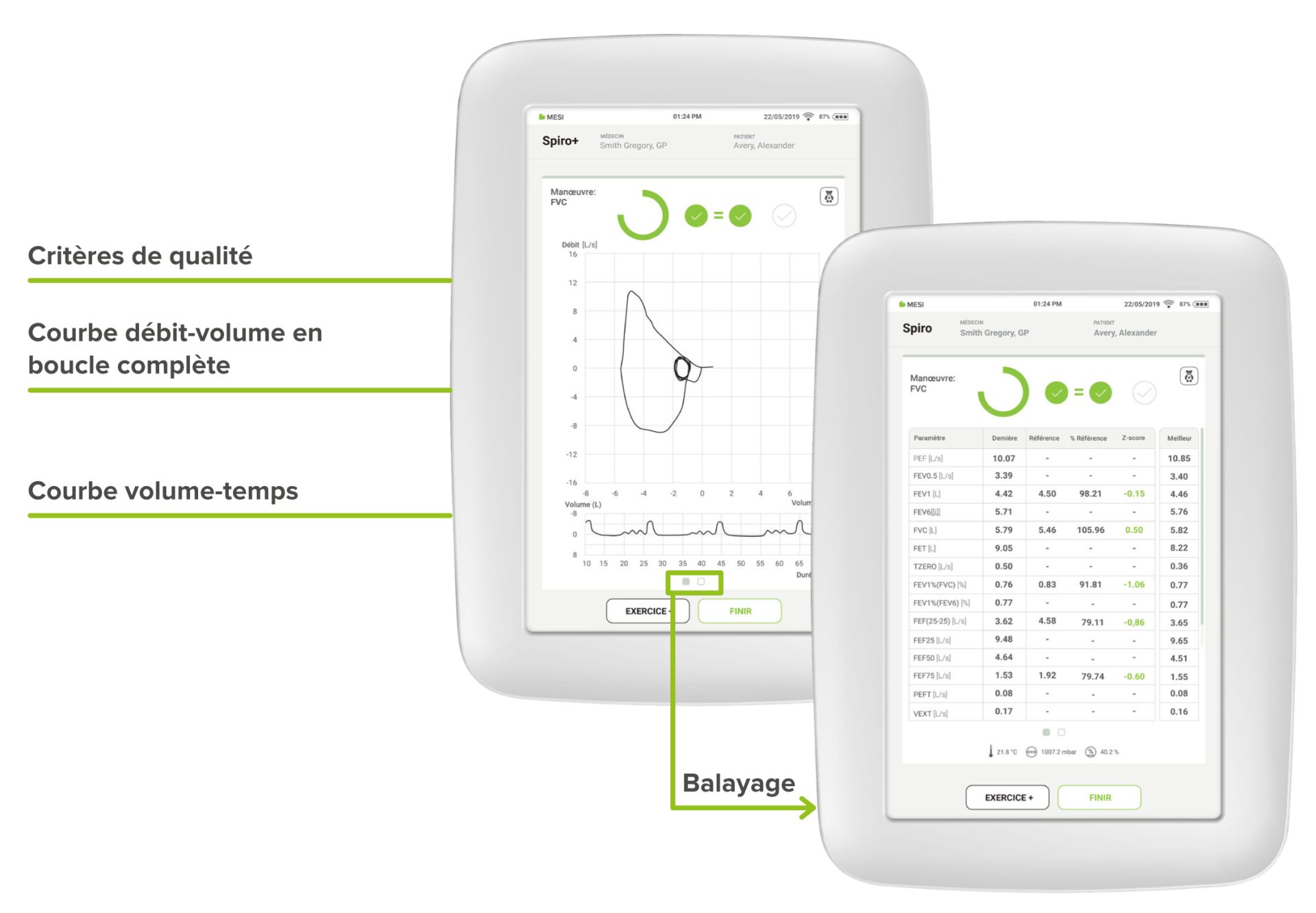

Affichage en temps réel de la courbe débit-volume

Pendant la manoeuvre de spirométrie, il est possible de la surveiller grâce à un affichage visuel amélioré de la courbe débit-volume et des paramètres. Vous pouvez passer du graphe au tableau des paramètres.

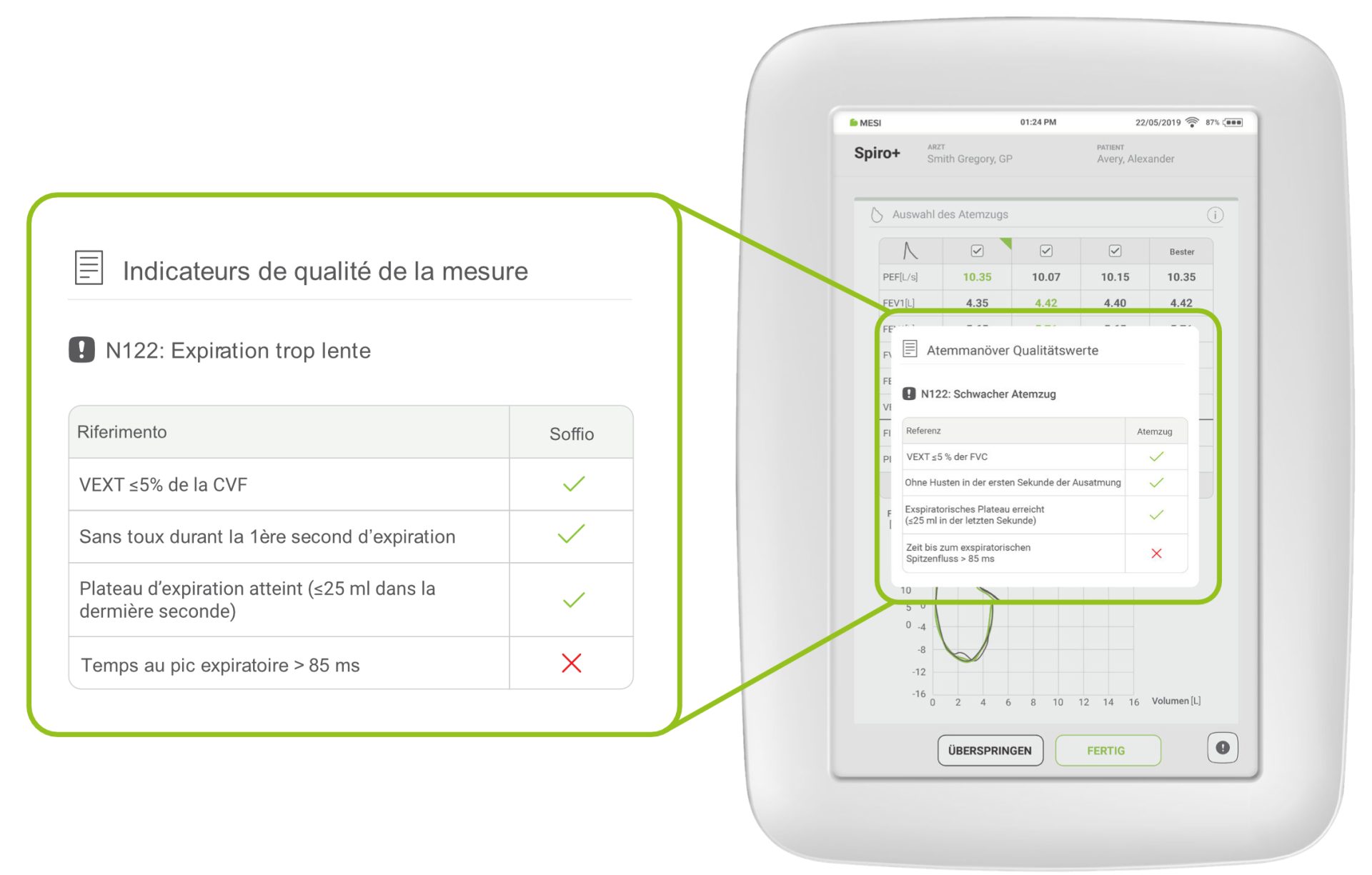

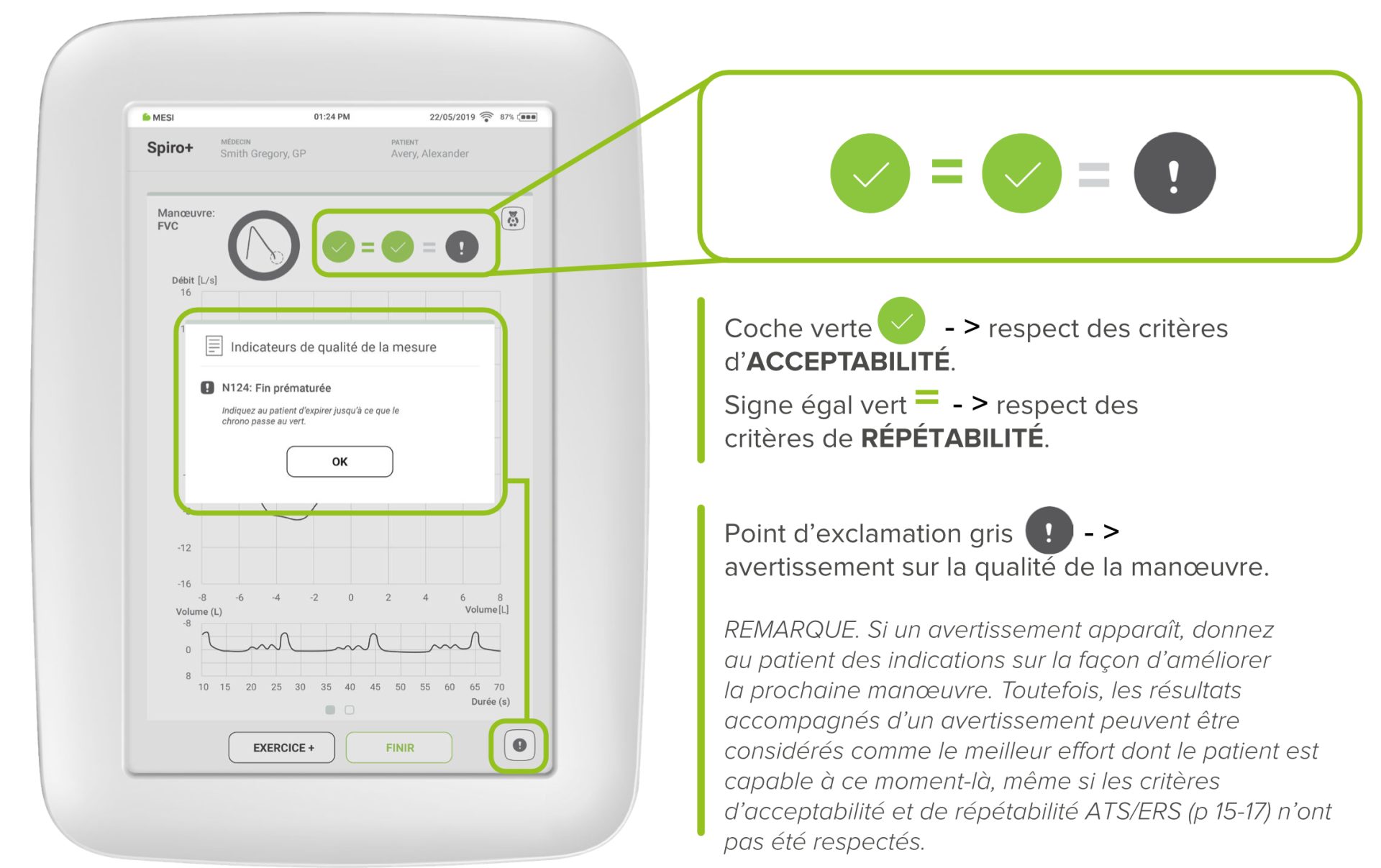

Avertissements sur la qualité de la manoeuvre

Si MESI mTABLET SPIRO ne détecte aucun problème de qualité dans la manoeuvre effectuée, une coche verte apparaîtra. Dans le cas contraire, l’un des avertissements de qualité s’affichera sur l’écran de mesure :

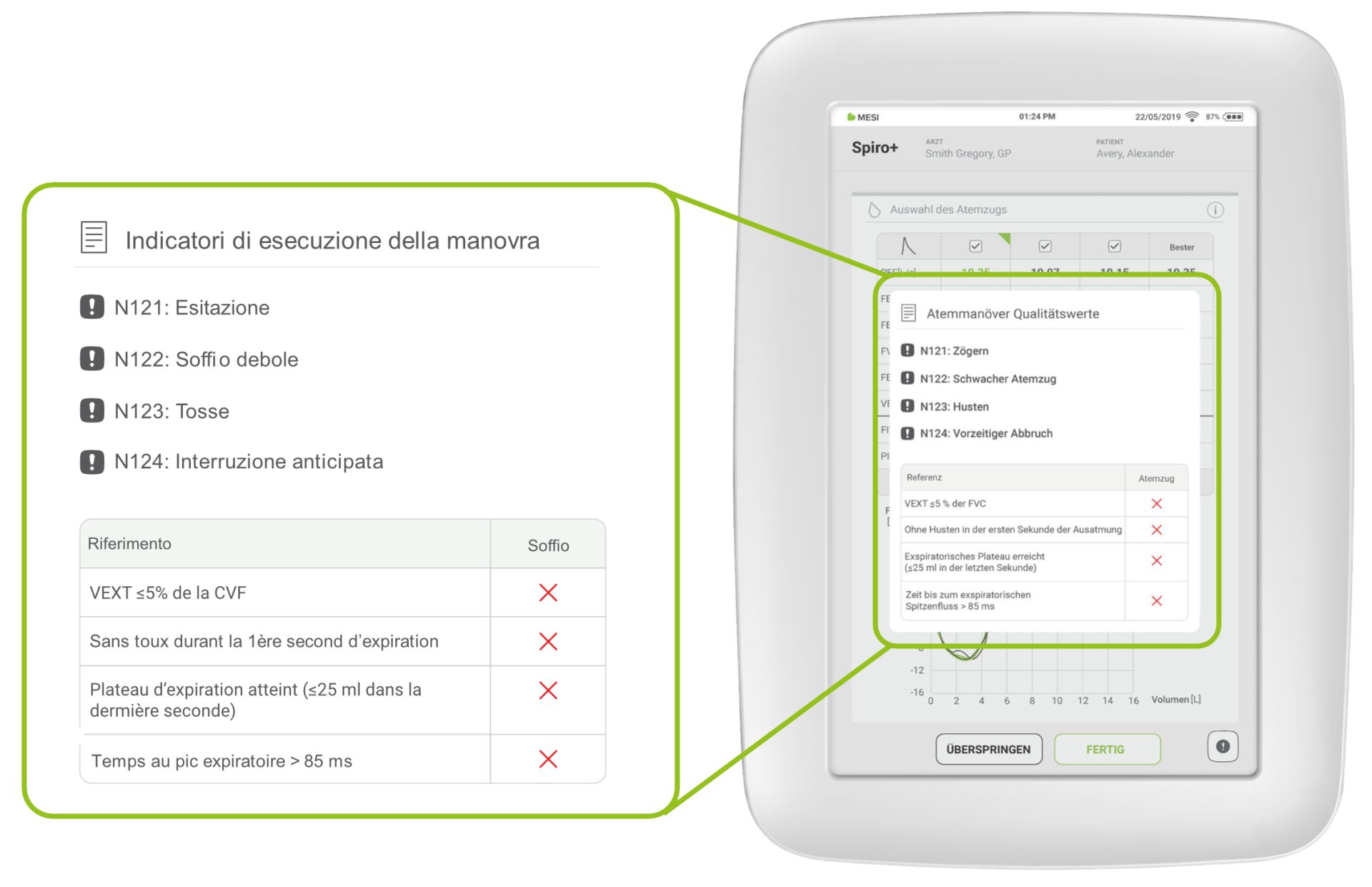

Voici un exemple si aucun des critères d’acceptabilité n’a pas été respecté :

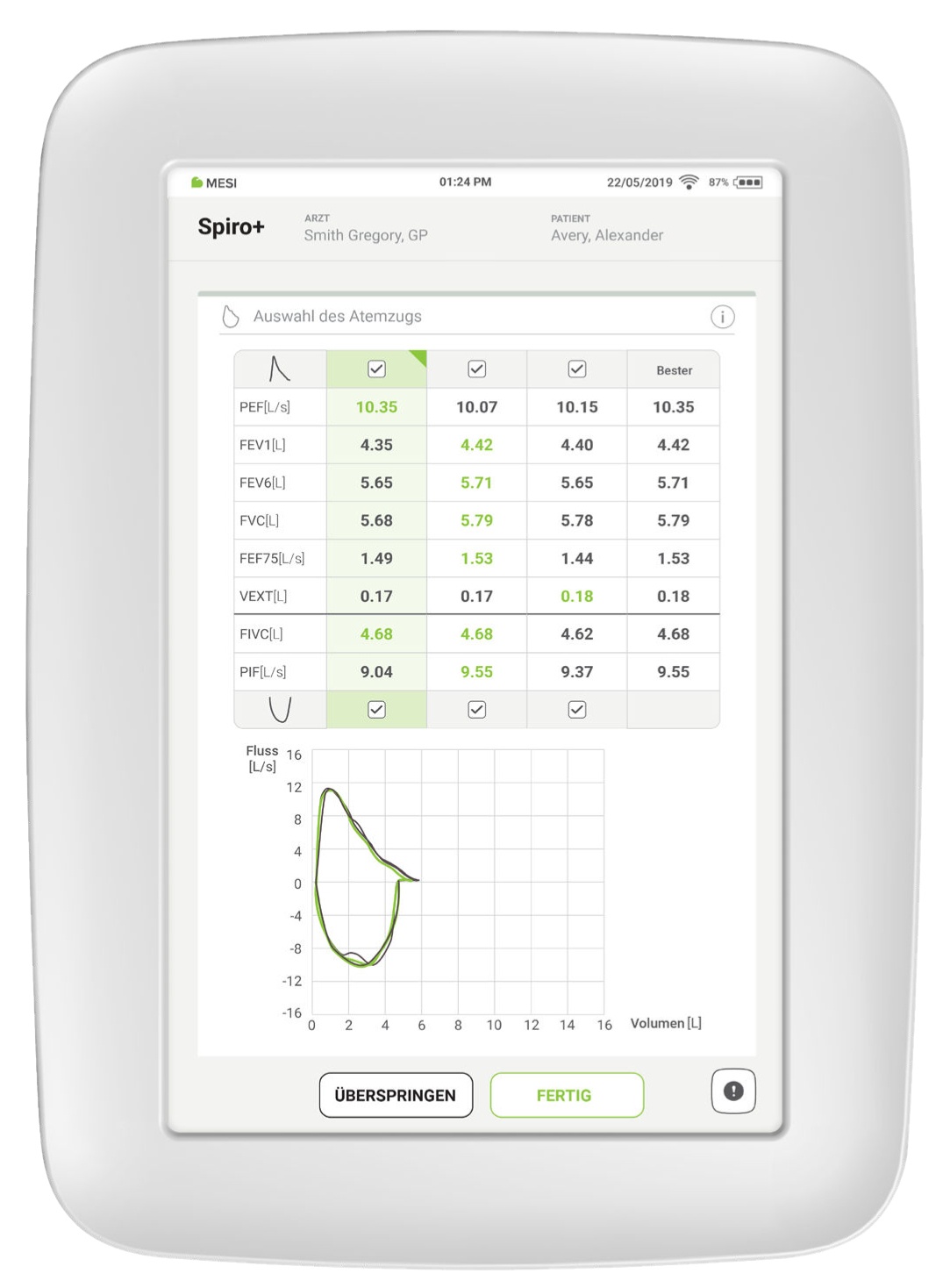

Sélection des meilleurs résultats (sélection BestBreath™)

MESI mTABLET SPIRO analyse les expirations et sélectionne automatiquement la meilleure courbe. C’est un avantage si deux courbes étaient très similaires. Toutefois, il est également possible de désélectionner toutes les manoeuvres sélectionnées et de choisir manuellement celle que l’on préfère.

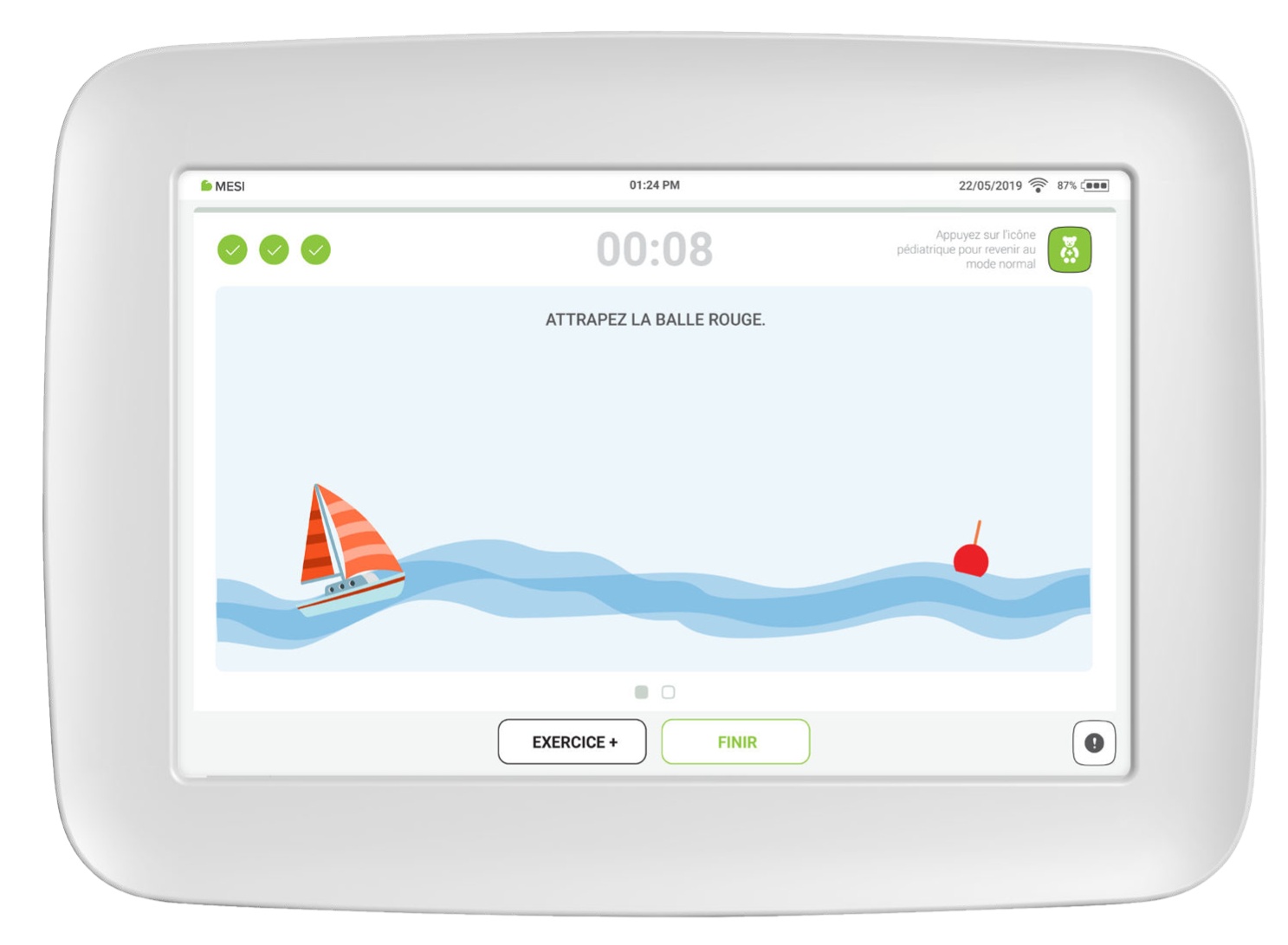

Mode incitatif animé

Le mode incitatif animé est utilisé à des fins pédiatriques. Il est conçu pour s’adapter aux caractéristiques psychologiques des enfants à mesure qu’ils réalisent le test de spirométrie. Au fur et à mesure que le patient souffle, le voilier se rapproche de la bouée rouge. Le souffle est réussi lorsque le voilier touche la bouée et que la coche verte apparaît.

Dans MESI mTABLET SPIRO, l’animation incitative est basée sur les critères ATS/ERS 2019 [16].
